Stoddart Plumbing Ecoflush Urinal Flushing Sensor FD.EUFS

Stoddart Plumbing Ecoflush Urinal Flushing Sensor FD.EUFS

FD.EUFS

    The Stoddart Plumbing Ecoflush Urinal Sensor features a 1/2 inch mains water supply, eliminating the need for a cistern. It is also vandal resistant as it can be installed in a concealed fashion.

    This flushing sensor range is made to suit a range of Stoddart Plumbing urinals - please refer to specification for details.

    • 1/2 inch mains water supply eliminating the need for a cistern
    • Concealed installation for vandal resistance
    • Adjustable sensor range and flush volume
    • Microwave sensor designed to penetrate through most roof and wall surface materials including plaster & timber, not including steel
    • Single feed compatible with Stoddart Urinals 1800mm long and under
    • Dual feed compatible with Stoddart Urinals over 1800mm long
    • Triple feed compatible with Stoddart Urinals over 3600mm long

      General
      Brand
      Stoddart Plumbing Products

    Stoddart Plumbing Microwave Sensor Flushing Device for Urinals - Single Feed FD.EUSF.MIC

    FD.USFV.MIC

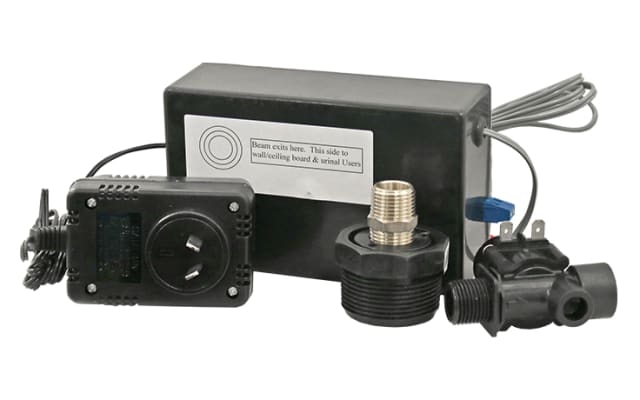

      A ceiling sensor activated Microwave Sensor urinal flush device, suitable for flushing slab urinals with tube spreaders. The Flush valve kit includes one ceiling sensor, one controller module, connection cables and one 12V DC transformer.

      Depending on the water supply conditions, flow rate requirements or length of urinal additional SV-6.1 flush valves or Flush Valve Kits can be added. The flush valve can be operated directly off the mains water supply. The detection area of the ceiling mounted sensor is very defined and detects persons only in the immediate vicinity along the face of the urinal.

      This feature enhances water conservation due to more precise detection. After detection, a flush cycle is automatically activated. Activating a flush cycle does not mean that the urinal is immediately flushed. The time-delay until flushing is fully adjustable between 1 to 20 minutes. During the flush-delay period additional users will not trigger new flush cycles, a feature which enhances water conservation benefits.

      • 1/2 inch mains water supply eliminating the need for a cistern
      • Concealed installation for vandal resistance
      • Adjustable sensor range and flush volume
      • Microwave sensor designed to penetrate through most roof and wall surface materials including plaster & timber, not including steel
      • Single feed unit compatible with Stoddart Urinals 1800mm long and under

        General
        Brand
        Stoddart Plumbing Products
        Amp Plug
        10A
        Specification
        Sensor Number
        1

      Stoddart Plumbing Microwave Sensor Flushing Device for Urinals - Dual Feed FD.EUSF.MIC.2

      FD.USFV.MIC.2

        A ceiling sensor activated Microwave Sensor urinal flush device, suitable for flushing slab urinals with tube spreaders. The Flush valve kit includes one ceiling sensor, one controller module, connection cables and one 12V DC transformer.

        Depending on the water supply conditions, flow rate requirements or length of urinal additional SV-6.1 flush valves or Flush Valve Kits can be added. The flush valve can be operated directly off the mains water supply. The detection area of the ceiling mounted sensor is very defined and detects persons only in the immediate vicinity along the face of the urinal.

        This feature enhances water conservation due to more precise detection. After detection, a flush cycle is automatically activated. Activating a flush cycle does not mean that the urinal is immediately flushed. The time-delay until flushing is fully adjustable between 1 to 20 minutes. During the flush-delay period additional users will not trigger new flush cycles, a feature which enhances water conservation benefits.

        • 1/2 inch mains water supply eliminating the need for a cistern
        • Concealed installation for vandal resistance
        • Adjustable sensor range and flush volume
        • Microwave sensor designed to penetrate through most roof and wall surface materials including plaster & timber, not including steel
        • Dual feed unit compatible with Stoddart Urinals over 1800mm long

          General
          Brand
          Stoddart Plumbing Products
          Amp Plug
          10A
          Specification
          Sensor Number
          2

        Stoddart Plumbing Microwave Sensor Flushing Device for Urinals - Triple Feed FD.EUSF.MIC.3

        FD.USFV.MIC.3

          A ceiling sensor activated Microwave Sensor urinal flush device, suitable for flushing slab urinals with tube spreaders. The Flush valve kit includes one ceiling sensor, one controller module, connection cables and one 12V DC transformer.

          Depending on the water supply conditions, flow rate requirements or length of urinal additional SV-6.1 flush valves or Flush Valve Kits can be added. The flush valve can be operated directly off the mains water supply. The detection area of the ceiling mounted sensor is very defined and detects persons only in the immediate vicinity along the face of the urinal.

          This feature enhances water conservation due to more precise detection. After detection, a flush cycle is automatically activated. Activating a flush cycle does not mean that the urinal is immediately flushed. The time-delay until flushing is fully adjustable between 1 to 20 minutes. During the flush-delay period additional users will not trigger new flush cycles, a feature which enhances water conservation benefits.

          • 1/2 inch mains water supply eliminating the need for a cistern
          • Concealed installation for vandal resistance
          • Adjustable sensor range and flush volume
          • Microwave sensor designed to penetrate through most roof and wall surface materials including plaster & timber, not including steel
          • Triple feed unit compatible with Stoddart Urinals over 3600mm long

            General
            Brand
            Stoddart Plumbing Products
            Amp Plug
            10A
            Specification
            Sensor Number
            3
