Stoddart Plumbing Floor Trough - Stainless Steel SPFT
(Discontinued)
SPFT

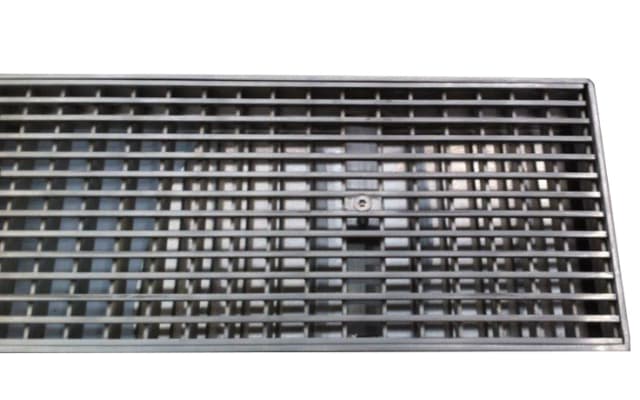

- Order Grates with either 10 mm apertures for max drainage or 5 mm apertures for safety in areas exposed to high-healed shoes with grate options are available for Class A pedestrian traffic and up to Class C commercial vehicle loading

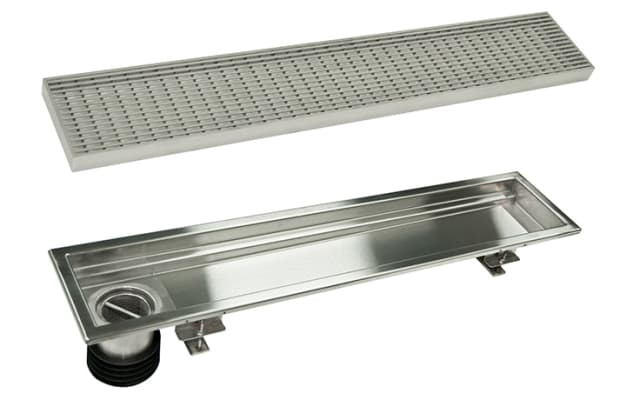

- Normal outlet is 90mm diameter outlet with waste seal for connection to standard 100 mm drainage and a removable stainless steel perforated basket with solid handle is fitted to recess in trough base
- Brackets allow fixing to floor and setting level prior to pouring concrete floor (check trench depth). The square top edge profile gives best results when concrete is poured in around the trough
- 1:100 fall is standard in the base to ensure complete draining of the trough. Centre waste troughs <1500 mm long can be made flat with cross break to provide some drainage
- Troughs and Grates are made from quality 304 grade stainless steel (316 grade stainless steel available as option)
-
Various Dimensions
Specification
- Brand
- Stoddart Plumbing Products
